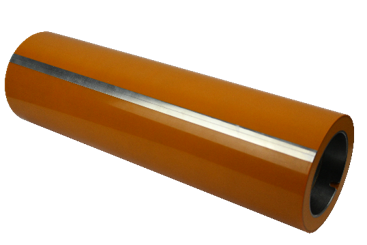

Enhance composite sleeve offering maximum stability and repeat performance

Designed specifically for the flexographic industry, RotoMetrics AccuPrint™ EC sleeve is the most stable composite sleeve in the market.  It is built using a unique layering of materials known for their high dimensional stability and resistance to permanent deformation and aging. With the addition of a metal cut line and steel end ring, this sleeve will provide increased life and repeat performance.



Product Features

  • Durable patented fiber inner core offering maximum strength and resistant to chemicals and UV light
  • Compressible foam layer resistant to permanent deformation and aging
  • Stitch, bonded and compressed core material that is light weight with extremely high dimensional stability
  • Outer resin reinforced with polyester filaments
  • Optional metal cut line allows cutting directly onto sleeve surface (see product customization options)
  • Optional steel ring insert prevents damage to alignment notch

Product Applications

  • Tag & Label Applications
  • Packaging
  • Specialty Applications

Processed Materials

  • Paper
  • Film
  • Packaging

Markets For Use

Product availability may vary by region. Contact your sales representative for additional details.

  • Standard narrow web width up to 31.5” (800mm), with larger sizes available upon request
  • Available repeat length range from 9.45” to 59” (240-1500mm)
  • Wall thickness from .03 to 3.9” (0.8-100mm)
  • Operating temperature up to 140°F (60°C)
  • Metal cut line – allows cutting directly onto the surface of the sleeve (not available in all countries)
  • Metal end ring – prevents excessive damage to alignment notch
  • For European Union countries: Conductive option available to meet EU Directive No. 94/9/EG (also known as ATEX 95
