Maximizing uptime with targeted air blasts and complete control.

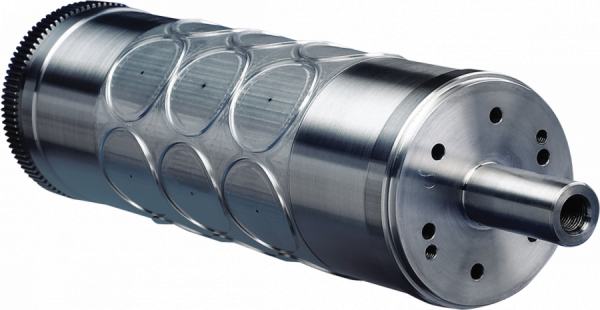

The Multi-Port Air Eject Die is a piece of state-of-the-art technology innovated by RotoMetrics to give you the most possible control over waste removal in metal-to-metal cutting applications. Air is passed down individual channels that are aligned with ejection points. With the Multi-Port Air Eject Die, you may also use a combination of compressed air and vacuum to select a specific die cut cavity and release it later in the die’s rotation. With each rotation of the Multi-Port Air Eject Die you can control, direct, and eject small pieces of waste into a waste collection device.

Product Features

  • Uses compressed air and/or vacuum to optimize the removal of material
  • Can concentrate air/vacuum at a specific row of cavities
  • Can angle target blast of air/vacuum for the most precise directional advantage
  • Can be used with a combination of compressed air and vacuum to select a die cut cavity and place it at another location during the die’s rotation

Product Applications

  • Tag & label converting
  • Automotive parts
  • Industrial parts
  • Electronic components
  • Engineered precision parts
  • Medical components & devices
  • Adhesive bandages
  • Gaskets

Processed Materials

  • Most Materials

Markets For Use

Product availability may vary by region. Contact your sales representative for additional details.

  • Air force is determined by capacity on air compressor and number of holes on dies
  • Compatible with RD250 and RD300 solid dies
  • Contact a RotoMetrics customer service representative for additional technical specifications
  • Optimize your use of the Multi-Port Air Eject Die by using a combination of compressed air and vacuum
  • Contact a RotoMetrics customer service representative to identify the best way to optimize the Multi-Port Air-Eject Die for your converting challenge
